Flat Non-metallic aerial fiber optic cable GYFXTBY

Flat Non-metallic aerial fiber optic cable GYFXTBY

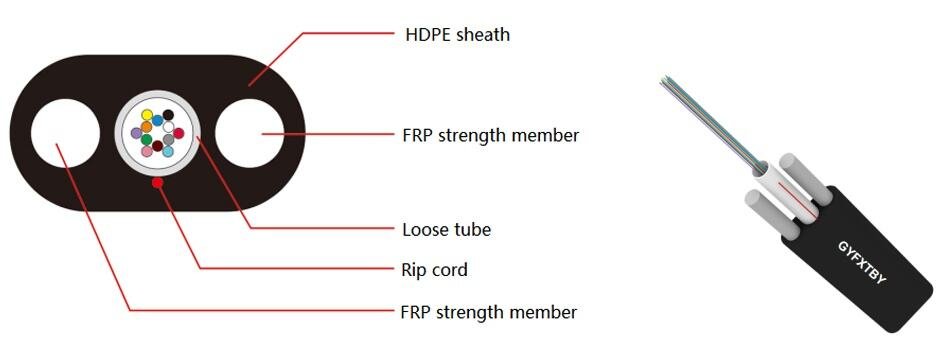

GYFXTBY is a non-metallic aerial fiber optic cable with a flat structure. It has 2 FRP that are on both sides of parallel as its strength member. It is constructed with central loose tube with multiple 250µm optical fibers and is filled with a water-resistant compound.It's specifically designed for overhead installation to transmit optical signals.

Introduction

Flat

MOQ：	4KM	Packaging:	Wooden drum
Delivery Time:	7-15 working days	Brand Name:	SOCT
Supply Ability:	5000KM/month	Model Number:	GYFXTBY
Place of Origin:	Jiangsu,China	Certification:	ISO9001,ROHS,CE,FCC SDOC

Detail Information:

Fiber Count:	2-144
Fiber Type:	G652D,G655D,OM1,OM2
Fiber Brand:	YOFC,HTGD
OEM:	Yes
Application:	Aerial installations, FTTH
Structure	Flat
Maximum fiber	12 cores
strength member	FRP

Features:

Tensile Strength: 2 Parallel FRP allow the cable stand with high tensile forces, making it ideal for applications requiring good strength and reliability.

Non-metallic construction: Reduces the environmental impact compared to metallic cables.

Loose tube structure: Protects individual optical fibers from micro-bending, ensuring reliable signal transmission.

Corrosion resistance: Minimizes maintenance requirements and extends the cable's lifespan.

Easy Installation: GYFXTBY cables are lightweight and flexible, making them easy and quick to install. They can be easily deployed for both aerial and burial applications.

Technical parameters:

No. of cable			1-12
Fiber Model			G652D
Loose tube	Material		PBT
	Thickness		0.35（±0.05）mm
	Diameter		2.0（±0.1）mm
	Color		Natural
Strength Member	Material		FRP
	Diameter		1.5（±0.05）mm
	No.		2
Outer Sheath	Material		MDPE
	Color		Black
Cable Diameter			(4.0±0.2)×(8.0±0.2)mm
Cable Weight			32（±5）kg/km
Max. allowable tension （Short-term）			1335N
Max. allowable tension （Long-term）			405N
Crush resistance test			1000N/10cm
Min. bending radius		Static	20x cable Ø
		dynamic	10x cable Ø
Temperature range （℃）		Installation	-30~+70
		Transport&Storage	-40~+70
		Operation	-40~+70

G652D Fiber Data Sheet :

FIBER PERFORMANCE （ITU-G.652）	Item	specifications
	Mode field diameter（μm）	1310nm 9.2±0.4
		1550nm 10.5±0.4
	Coating diameter（μm）	245±7
	Coating non-circularity （%）	＜6.0
	Mode field /cladding concentricity error （μm）	≤0.6
	Cladding diameter（μm）	125.0±1
	Cladding non-circularity （%）	＜1.0
	Attenuation（dB/Km）	1310mm ≤0.36
		1550nm ≤0.22
		1625nm ≤0.24
	Cut-off wavelength （nm）	2m（λc） 1150~1330
		20m cable +2m fiber （λcc）＜1260
	Dispersion	Zero dispersion wavelength（m） 1300~1322
		Zero dispersion slope（ps/nm².Km） ≤0.092
		Chromatic dispersion (Ps/nm2.Km)	1285~1330nm ≤3.1
			1550nm ≤18
			1625nm ≤22
	Fiber color	blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua

Fiber Colors:

NO.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
NO.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

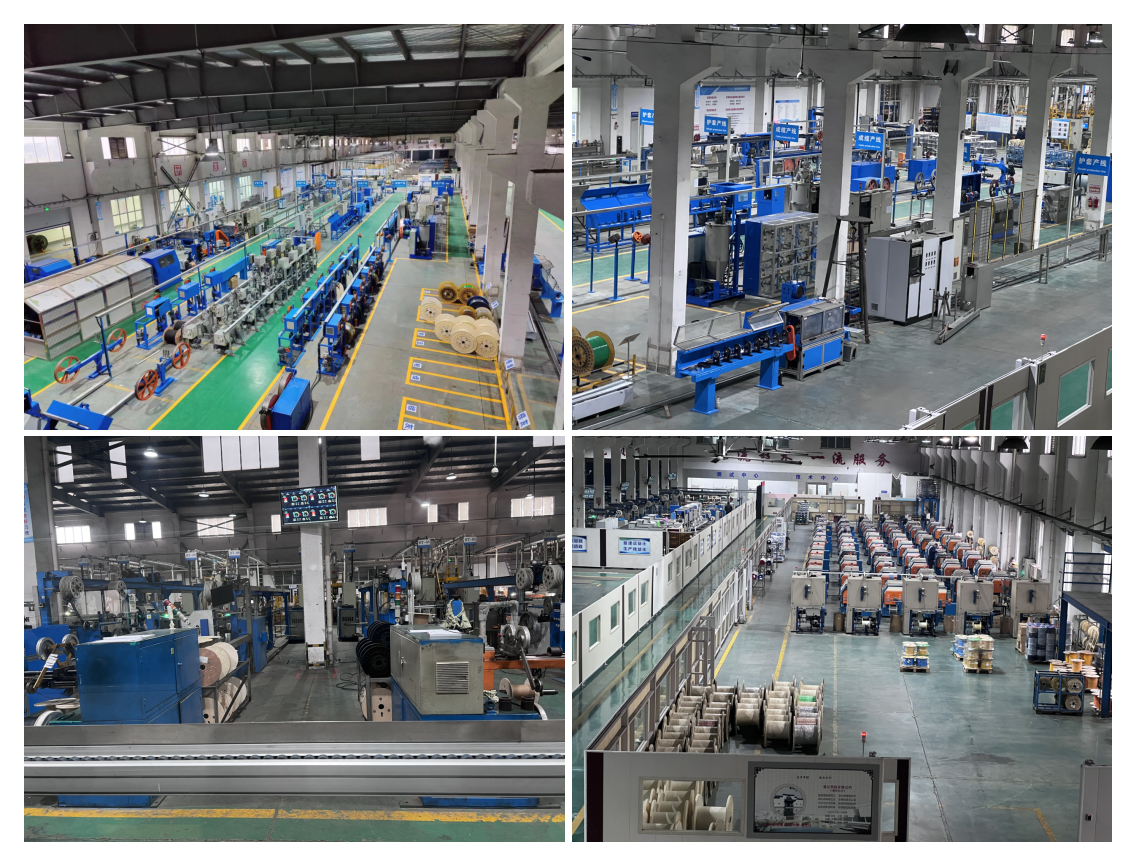

Production workshop：

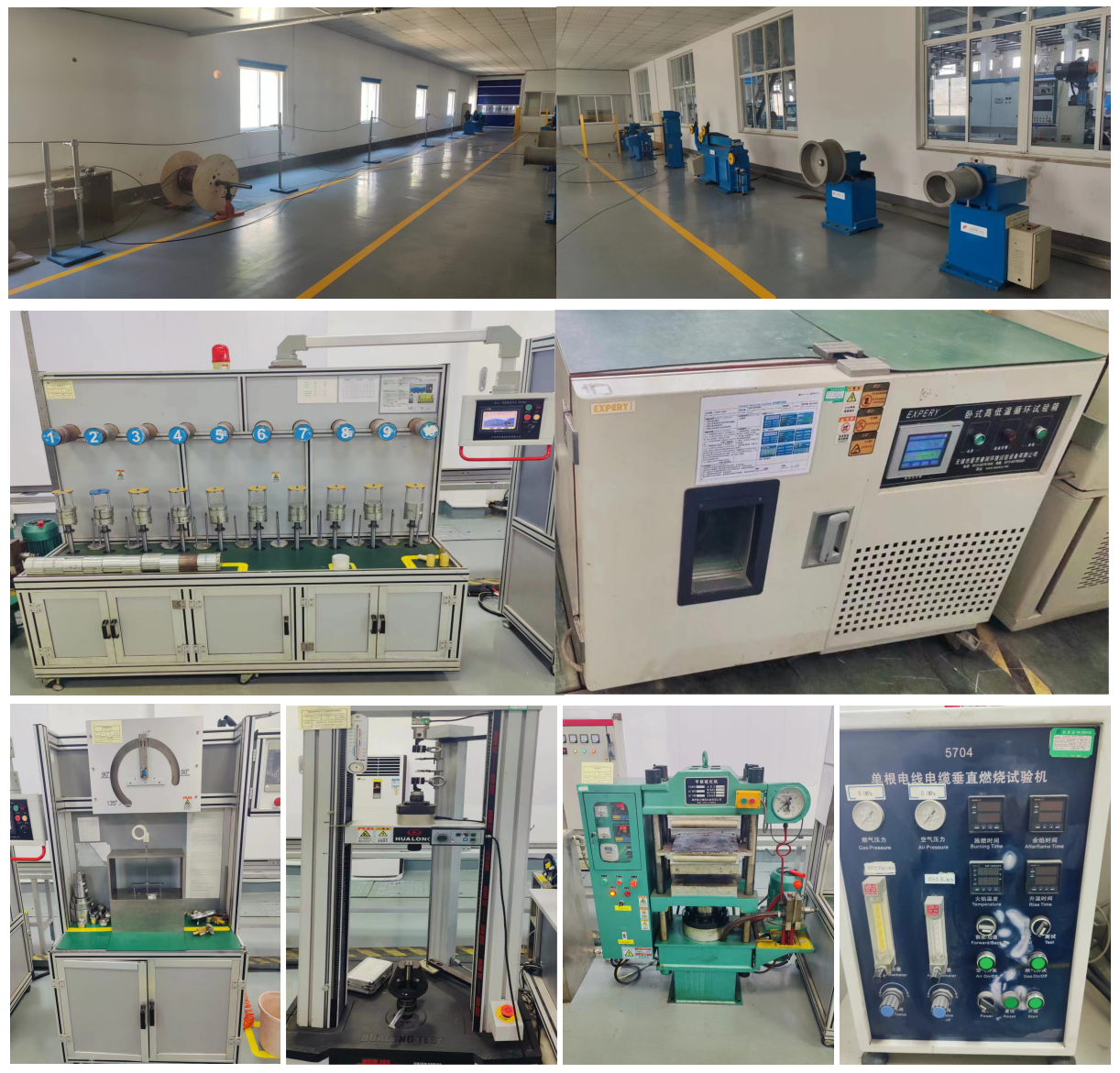

Quality verification：

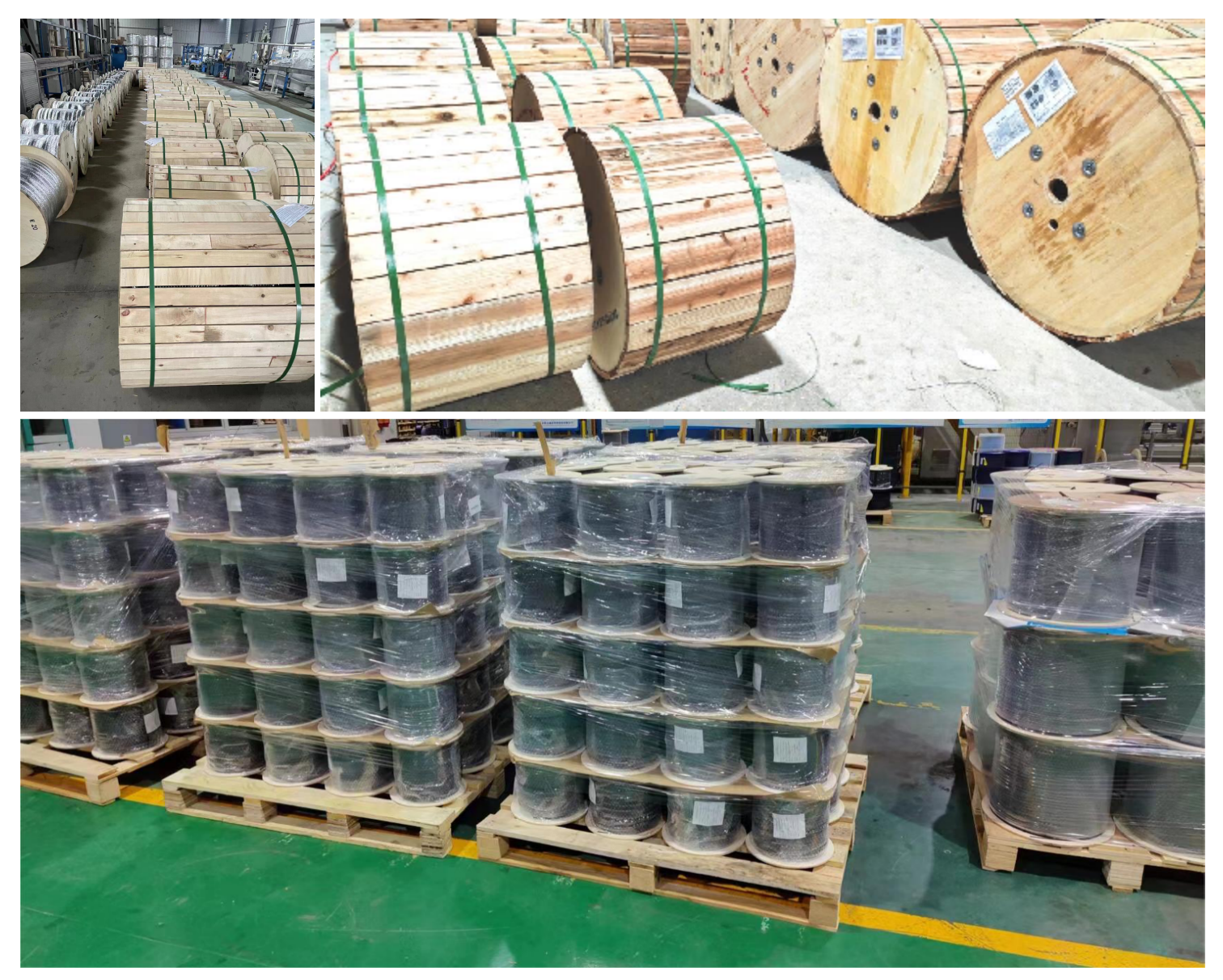

Packaging:

FAQ:

Q1: How to choose the right optical cable?

Choosing an optical cable requires considering factors such as transmission distance, data rate, environmental conditions, and connection methods. You can provide your specific requirements, and our professional technical team will recommend the suitable optical cable products for you.

Q2: What’s the MOQ?

The MOQ of Fiber Optic cable depends on the product model and customer needs. You can consult our sales personnel for more details.

Q3: What’s delivery time?

Our delivery time is generally 7-15 working days. The specific delivery time will be determined based on the order quantity and production schedule.

Q4: Why are optical cable prices on the market so varied?

The price differences in optical cables are the result of multiple factors. When choosing optical cables, you should consider price, quality, brand, and after-sales service comprehensively to select products that meet your needs.

Q5: Is it possible to customize optical cables with special specifications?

Absolutely! We will have detailed discussions with you to understand your needs. Then, our engineers will design the optimal solution based on your requirements. We will produce samples for your testing and confirmation. Finally, we will arrange mass production according to your confirmation.
