Description

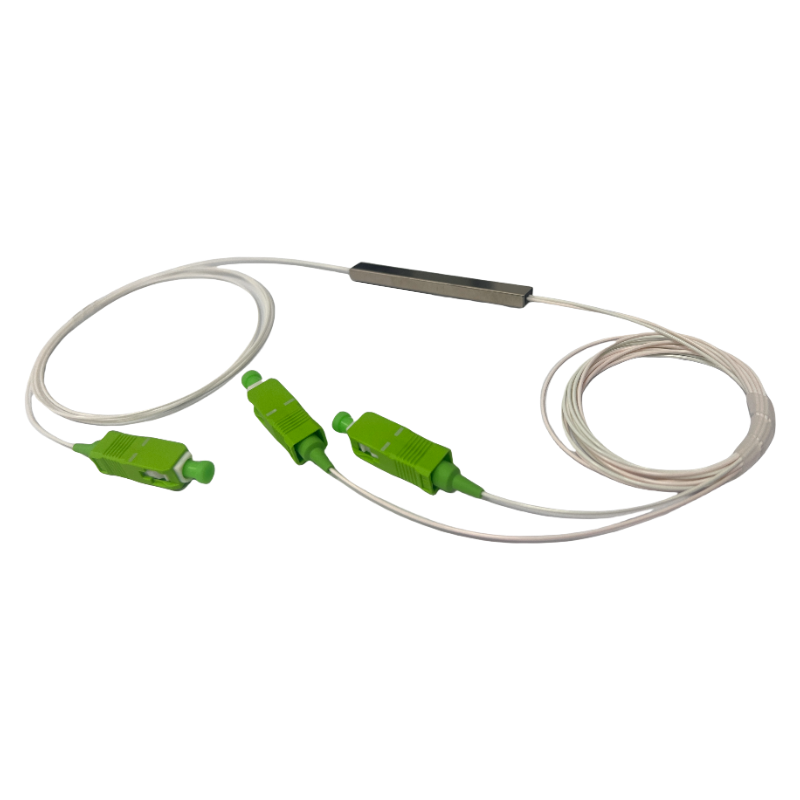

The Mini PLC 1×2 Fiber Splitter is a compact 900μm single-mode module with SC APC connectors, ensuring low insertion loss and high reliability. Designed for FTTH, PON, and data center applications, it evenly splits optical signals with precision. This mini module is ideal for high-density networks, providing stable performance and efficient fiber distribution.
Technical parameters:
|
Produc name： |
Fiber Optic Splitter |
Packaging: |
Carton box |
|
Model Number: |
Mini PLC 1X2 |
Brand Name: |
SOCT |
|
PLC type： |
Mini Module |
Place of Origin: |
Jiangsu,China |
|
Fiber type： |
G657A1 |
OEM: |
Yes |
|
Output Adaptor: |
SC APC |
Delivery Time: |
3-7 working days |
Features:
1.RoHS Compliant
2.Compact Size Design
3.Outstanding Reliability and Stability
4.Minimal Insertion Loss and Low Polarization Dependent Loss (PDL)
5.Broad Operating Wavelength Range: 1260nm to 1650nm
6.Wide Operating Temperature Range: -20°C to 70°C
Specifications:
|
Port Configuration |
1×2 |
1×3 |
1×4 |
1×6 |
1×8 |
1×12 |
1×16 |
1×32 |
1×64 |
|
Insertion Loss (dB) |
4.1 |
6.5 |
7.5 |
10.0 |
10.8 |
12.9 |
13.8 |
17.0 |
21.4 |
|
Loss Uniformity (dB) |
0.6 |
0.6 |
0.6 |
0.6 |
0.8 |
1.0 |
1.2 |
1.5 |
1.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.4 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
UPC≥50; APC≥55 |
||||||||
|
Directivity (dB) |
≥55 |
||||||||
|
Operating Wavelength (nm) |
1260~1650 |
||||||||
|
Fiber Type |
G657A1 or customer specified |
||||||||
|
Operating Temperature |
-40~+85 |
||||||||
|
Storage Temperature |
-40~+85 |
||||||||
Profile Size:
|
1×2;1×3;1×4;1×6;1×8 |
7x4x50mm or 7x4x60mm |
|
1×12;1×16 |
12x4x60mm |
|
1×32 |
20x6x80mm |
|
1×64 |
40x6x100mm |
Packing:
|
1×2;1×3;1×4;1×6;1×8 |
200pcs/carton |
|
1×12;1×16 |
100pcs/carton |
|
1×32 |
50pcs/carton |
|
1×64 |
20pcs/carton |
|
Packing material |
Plastic box (PE) |
|
Carton Dimension (HxWxD) |
435x410x410mm |
