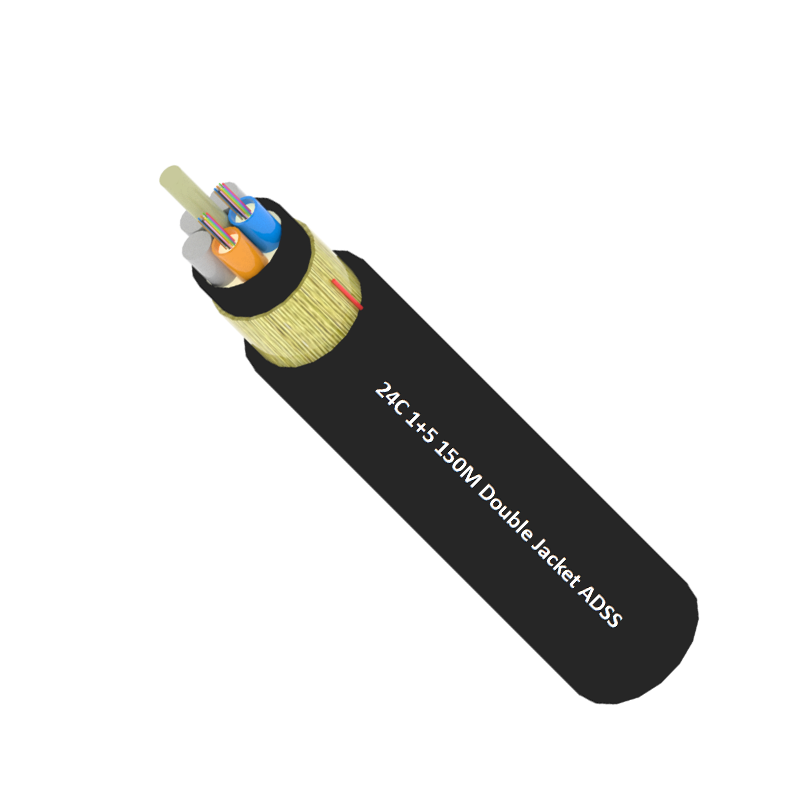

ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable

Product Names:

ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable

Detail Information:

MOQ：

10KM

Packaging:

Wooden drum

Delivery Time:

5-25 days

Length:

Customizable

Brand :

OEM

Model Number:

ADSS-24B1.3-150m-Double

Place of Origin:

China

Certification:

ISO9001,ROHS,CE,FCC

Description:

This ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable supports spans up to 150m and adopts a double-jacket structure to effectively resist construction and installation environments such as moisture, abrasion, and temperature fluctuations. Its all-dielectric self-supporting structure does not require additional metal supports, such as tension or clamping hardware for hanging towers, thereby reducing installation complexity and costs. 24-core single-mode fiber G.652.D, supports high-bandwidth data transmission, and is ideal for rural broadband expansion and community connection projects. This ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable has excellent durability and easy operation, and it has a long service life. And its lightweight design makes it suitable for deployment on uneven terrain, bridging the digital divide in underserved areas.


ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable

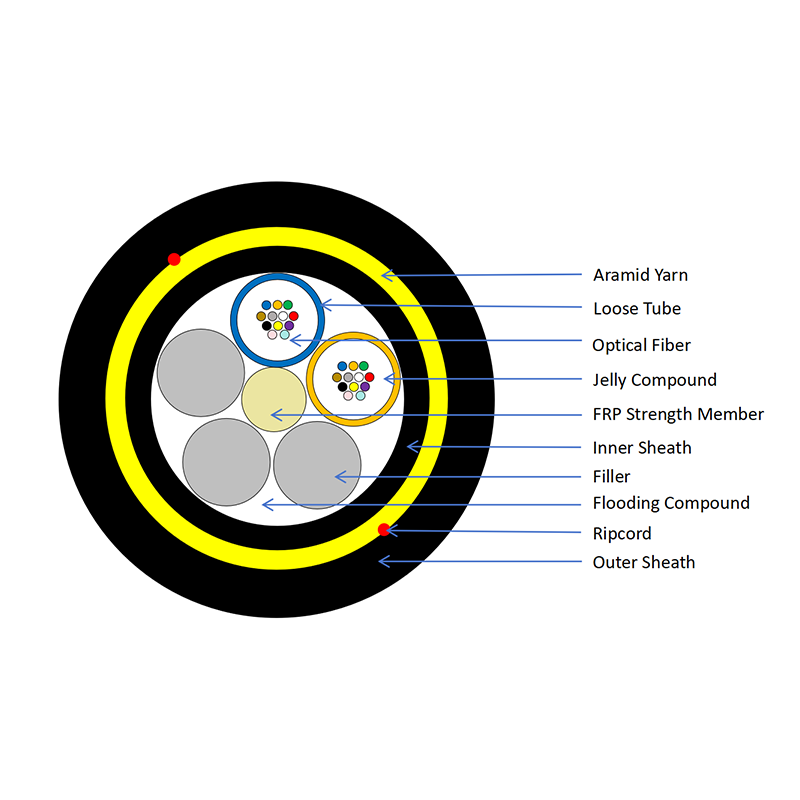

Cable Paremeter:

Feature:

Fiber Count:

24 Core

þDouble-jacket design ensures durability.

þAll-dielectric eliminates electrical interference.
þSelf-supporting for simplified aerial deployment.
þHigh-capacity 24-core data support.
þLong-lasting under vibration and tension.

Fiber Type:

G652D,G655D

Fiber Brand:

YOFC,HTGD

Application:

Aerial Fiber Optic Cable

Span:

150m

RTS:

≥10.5KN

Application:

MAT:

≥4.2KN

þRural broadband network development.
þTelecom backbones in mountainous areas.
þPublic school network fiber infrastructure.
þRemote medical center communication links.

þInternet service expansion in small towns.

MAX Wind resistance:

30m/s wind speed

MAX Icing resistance:

5mm Ice Load

Cable Diameter:

11.1mm

Technical parameters:

Name

ADSS 24 Core Span 150m Double Jacket Aerial Dielectric Self-Supporting Cable

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤0.35 dB/km
≤0.32 dB/km
≤0.22 dB/km
≤0.30 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm².km)

Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm.km)
≤5.3 ps/(nm.km)
≤18 ps/(nm.km)
≤22 ps/(nm.km)

PMD_Q (Quadrature average*)

£0.2 ps/km^1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm

£ 0.1 dB/km

Main mechanical & environmental performance test

Item

Test Method

Acceptance Condition

Tensile Strength
IEC 794-1-2-E1

– Load: Short term tension
– Length of cable: about 50m

– Fiber strain 0.35%
– Loss change 0.1 dB @1550 nm
– No fiber break and no sheath damage.

Crush Test
IEC 60794-1-2-E3

– Load: Short term crush
– Load time: 1min

– Loss change 0.05dB@1550nm
– No fiber break and no sheath damage.

Impact Test
IEC 60794-1-2-E4

– Points of impact: 3
– Times of per point: 1
– Impact energy: 5J

– Loss change 0.1dB@1550nm
– No fiber break and no sheath damage.

Temperature Cycling Test
YD/T901-2001-4.4.4.1

– Temperature step:
+20oC→-40oC→+70oC →+20oC
– Time per each step: 12 hrs
– Number of cycle: 2

– Loss change 0.05 dB/km@1550 nm
– No fiber break and no sheath damage.

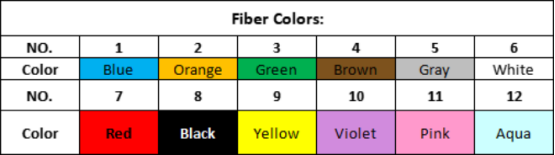

Fiber Colors:

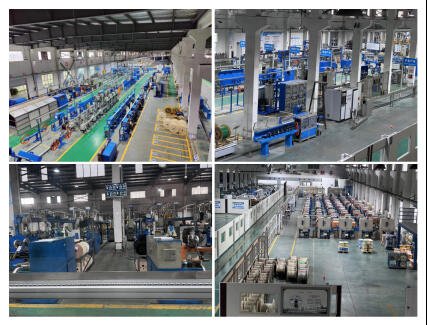

Production workshop：

Optic Fiber Cable Maker

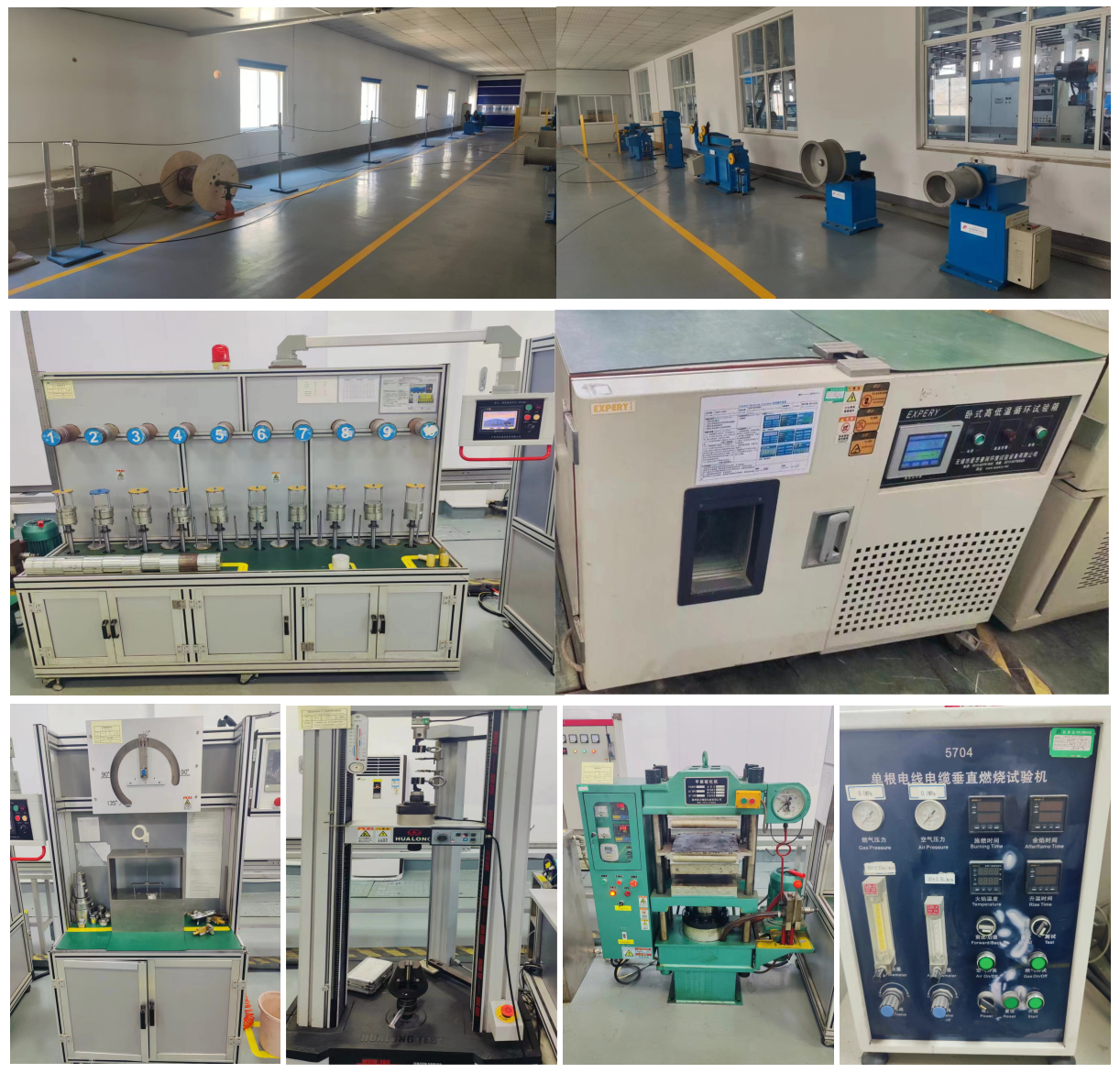

Quality verification：

Optical cable customization

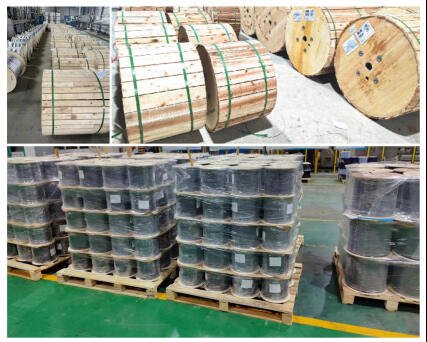

Packaging:

Stable transportation

FAQ:

Q1: Do you manufacture optical fiber cables?
We are a direct manufacturer of optical fiber cables.

Q2: What is your minimum purchase quantity?
Our minimum order is 10KM, though flexible based on your needs.

Q3: Could I obtain a sample?
Samples can be provided, but the customer will need to cover the shipping charges.

Q4: What is the estimated delivery time?
Delivery for 200KM generally takes 5-15 days, depending on the quantity ordered.

Q5: What is the quality like?
Every optical fiber is tested after production, and quality reports are available for you.

Q6:Are you able to provide OEM services?
We offer OEM services and can add your logo to the Products as requested.
